CLARK GEX 16-50 Electric Forklift

3,200lb. to 10,000lb. Three & Four Wheel

Solid Pneumatic Tires

All AC, 80 Volt System

In the past, one truck would be used for outdoor applications and another truck would be used for indoor warehousing. Now one GEX can handle both environments, leaving you with the thought… two “hands” aren’t always better than one.

CLARK GEX Electric Forklift

Features of the GEX CLARK Electric

Ease of Access

HINGED REAR CONTROL COVER

Supported on gas springs for easy service access from a standing position

ON-BOARD DIAGNOSTICS

Allow servicing mechanic to check fault codes without service tool

Upright & Carriage

MAXIMUM VISIBILITY

Nested I-channel allows space for cylinders, hoses and chains

HYDRAULIC CUSHIONING VALVE

Silent staging reduces shock and vibration

SHIMMABLE, SEALED & CANTED ROLLERS

Carriage has 6 rollers to maximize load distribution and reduce free play

Stable Platform

LOW CENTER OF GRAVITY

CLARK moved back the steer axle, dropped the battery compartment and moved all major components lower

CURVE CUTBACK

Reduces truck travel speed in turns

WIDE STANCE

Provides excellent lateral stability

Powered Reversing Drive Motors

2-WHEEL DRIVE

Provides added traction, especially on wet or uneven surfaces

WILL NOT SCUFF TIRES

Inside wheel power reverses in tight turns preventing scuffing of steer tires like conventional 4-wheel trucks

HALL EFFECT STEER SENSOR

Relays steer tire position to control

Drive Motors & Axles

FEWER PARTS & MINIMUM WEAR = LESS DOWNTIME

Enclosed, brushless

Thermal and stall protection

Dual/powered reversing for tighter turns

Suitable for Wet Applications

Same motors for E & EE

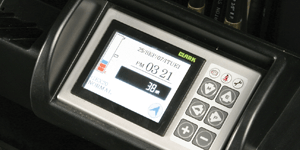

LCD Dash Display

FULLY ADJUSTABLE/PROGRAMMABLE

The operator can select from 4 pre-set performance modes

ALARM CODES

Indicates the current alarm code and stores previous alarm codes for quick access

PASSWORD PROTECTED

Certain adjustments can be password protected to allow only authorized operators to make adjustments
