CLARK C15-C18-C20S Gen 2 Solid Pneumatic Tire Forklifts

CLARK Gen 2 Series Forklifts

C15/18/20S GEN2

IC-PNEUMATIC – LPG
3000 / 3500 / 4000 lbs Capacity

The Gen2 C15-Series proudly adds to CLARK’s unique history of building the best forklifts with evolutionary steps inĀ ergonomics, power, safety, durability and performance. These narrow-width models, designed for distribution, manufacturing and warehousing of all types, are suited for the toughest applications.

Features

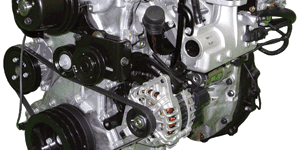

ENGINE

HIGH-PERFORMANCE HYUNDAI THETA LPG ENGINE

The 4-cylinder, dual overhead cam engine produces 52 HP and 114 ft-lbs of torque @ 1500 rpm for superior performance.

Internal, self-lubricating chain-driven cams and automatic chain tensioner provide long-life and protection from debris.

WORLD RECOGNIZED 4TNV88 YANMAR DIESEL ENGINE WITH VERTICAL EXHAUST STANDARD

Durable, easy to start, easy to service, excellent fuel economy

Durable, easy to start, easy to service, excellent fuel economy

EPA COMPLIANT

HYDRAULIC SYSTEM

MAXIMUM HORSEPOWER

Uses load-sensing flow control valve to reduce heat build-up

OPTIMUM PERFORMANCE OF ATTACHMENTS

Main hydraulic valve incorporates adjustable flow controls for tilt and auxiliary functions

SECTIONAL DESIGN

Allows for easy addition of extra functions and simplifies service

UPRIGHT MOUNTED LOAD LOWERING VALVE

Controlled lowering independent of engine speed

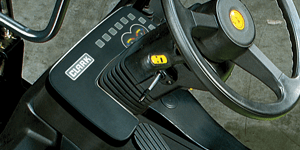

DASH DISPLAY

MICROPROCESSOR

  • Monitors condition and controls function of truck systems
  • Controls neutral starting and prevents cranking while engine is running

LCD DISPLAY

Hourmeter and maintenance intervals are displayed

LED LIGHTS INDICATE

  • Transmission temperature
  • Engine oil pressure
  • Alternator charge
  • Fuel system malfunction
  • Park brake applied
  • Maintenance required
  • Seat belt

PUSH SWITCHES

Headlight and optional worklights are controlled with push switches

UPRIGHT AND CARRIAGE

MAXIMUM VISIBILITY

Nested I-channel allows space for cylinders, hoses and chains

HYDRAULIC CUSHIONING VALVE

Silent staging reduces shock and vibration

SHIMMABLE, SEALED & CANTED ROLLERS

Carriage has 6 rollers to maximize load distribution and reduce free play

FRAME

ONE PIECE FRAME

Heavy duty, welded & formed steel plate protects from impact damage and extends the life of the truck

An integral hydraulic sump, with remote breather provides cooling for hydraulics in tough applications

STEERING AXLE

RUGGED “DOUBLE SHEAR” DESIGN

To withstand impact without loosening or breaking

SIMPLE, DOUBLE-ENDED CYLINDER DESIGN

Provides additional steering force

For more information, a demo or quote on a CLARK Gen 2 forklift, please send us a note, or give us a call at 888-952-7536.
